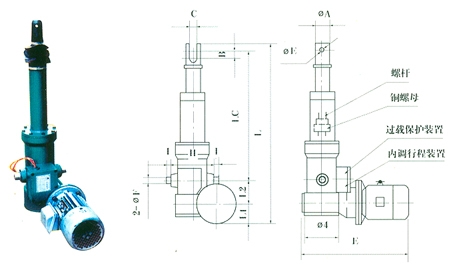

DTW型主要技术参数及外形尺寸
| 型号 | 功率KW | 速度(mm/s) | 行程S(mm) | L | Lc | B | L1 | L2 | φA | φF | φE | φ4 | H | I | C | E | |||
| I | II | min | max | min | max | ||||||||||||||
| DTW300 | 0.37 | 3.8 | 7.6 | 427+S | 427+2S | 245+S | 245+S | 245+2S | 20 | 100 | 121 | 42 | 25 | 12 | 140 | 210 | 25 | 20 | 450 |
| DTW500 | 0.75 | 2.63 | 5.3 | 488+S | 488+2S | 276+S | 276+S | 276+2S | 20 | 100 | 121 | 44 | 35 | 14 | 150 | 210 | 25 | 20 | 500 |
| DTW700 | 0.75 | 4.63 | 9.26 | 496+S | 496+2S | 283+S | 283+S | 283+2S | 25 | 100 | 121 | 52 | 35 | 14 | 170 | 210 | 25 | 20 | 540 |
| DTW1000 | 1.1 | 4.67 | 9.34 | 496+S | 496+2S | 283+S | 283+S | 283+2S | 25 | 100 | 121 | 52 | 35 | 14 | 170 | 210 | 25 | 20 | 540 |
| DTW1600 | 1.5 | 3.7 | 5.4 | 596+S | 596+2S | 263+S | 263+S | 263+2S | 35 | 125 | 176 | 64 | 35 | 25 | 220 | 288 | 30 | 35 | 607 |
| DTW2500 | 2.2 | 2.4 | 4.8 | 736+S | 736+2S | 360+S | 360+S | 360+2S | 40 | 150 | 186 | 80 | 40 | 30 | 310 | 288 | 30 | 40 | 762 |
| DTW4000 | 2.2-3 | 2.4 | 4.8 | 736+S | 736+2S | 360+S | 360+S | 360+2S | 40 | 150 | 186 | 80 | 40 | 40 | 310 | 310 | 40 | 40 | 762 |
| DTW5000 | 2.2-3 | 2.4 | 4.8 | 736+S | 736+2S | 360+S | 360+S | 360+2S | 40 | 150 | 186 | 80 | 40 | 40 | 310 | 310 | 40 | 40 | 762 |
